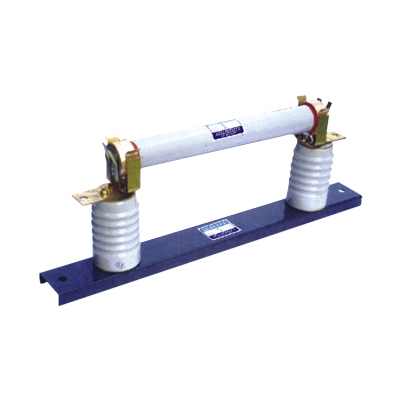

RN1型戶內高壓限流熔斷器、熔斷特性

RN1型戶內高壓限流熔斷器、熔斷特性
介紹
RN1型戶內高壓限流熔斷器、熔斷特性


  • RN1型戶內高壓限流熔斷器、熔斷特性


      □RN1型戶內高壓限流熔斷器,用于電力線路的過載及短路保護。所謂限流就是熔斷器在短路電流達到峰值之前就將其切斷的功能。 □The product is in overload or short-circuit protection for elctric transformer. The current limiting means that the fuse will cut off the circuit before the shortcircuit current reaches the peak value.
    ◆熔斷特性
    當通過熔斷器的電流為其額定電流的1.3倍時,1小時不熔斷;當通過熔斷器的電流為其額定電流的2倍時,1小時內熔斷;熔斷器的熔斷特性曲線如圖1,供選擇熔斷器時參考。 Current which passes the fuse when being 1.3 times of its specified electric current, Do not fusing for an hour; When the current through the fuse is 2 times of its specined electric current, fusing in an hour; Refer to its fusing feature curve in chart 1 when select the fuse.
    ◆技術數據 Technique data
    ◆熔斷管結構 Structure of fuse link

    熔斷管是熔斷器的主要部件,它是由熔絲裝在瓷管中,并在瓷管中充填石英砂,兩端密封而成。額定電流在7.5A以下及額定電壓 為35V的熔管,其熔絲是繞在特制的瓷芯上,如圖2.a;額定電流在7.5A以上的熔體管,其熔絲是懸掛在瓷管中如圖2.b。 The fuse pipe is the main part of fuse,it is made by installing the fuse wire in the porcelain pipe,filling the quartz sand in the porcelain pipe and sealing to-ends of pipe.For the fuse pipe with rated current below 7.5Aand 35V rated voltage,its fuse wire is rolled on the special por- celain core,referening to chart 2.a.for the fuse pipe with rated current above 7.5A,its fuse wire is hang in the porcelain pipe,referening to the chart.

      3 6 10 35
    額定電流 A 20 100 200 300 400 20 75 100 200 300 20 50 75 100 200 7.5 10 20 30 40
    **開斷電流KA (有效值)
    Max breaking curent KV effective vakue
    40 20 12 3.5
    最小開斷電流(以額定電流倍數表示)
    The mininum breaking current Express
    with specified electric current multipe
    不規定
    nuprovide
    1.3 不規定
    nuprovide
    1.3 不規定
    nuprovide
    1.3 不規定
    nuprovide
    1.3
    三相**斷流容量(MVA) 200
    重量 Weight 8 8.9 10.8 15.7 15.7 8.5 9.6 13.6 13.6 17 10 11.5 14.5 21 21 10 20 27 27 27
