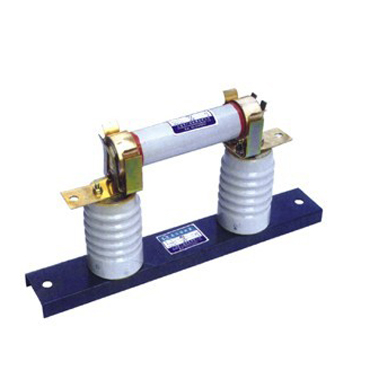

RN2型戶內高壓限流熔斷器、熔斷特性
RN2型戶內高壓限流熔斷器、熔斷特性
□RN2型戶內高壓限流熔斷器，用于電壓互感器的保護，其斷流容量為1000MVA。在短路時以限制線路電流到最小值的方式進行瞬 時開斷，1分鐘內熔斷電流應在0.6-1.8A范圍內。
□The product is used in overload or short-circuit protection for instrument transformer．At the time of holding up by restrain circuit current way to get minimum from carry on instantaneous to turn on and break,it should be within the range of 0.6-1.8A to fuse the electric current in one minute．
◆技術數據Technique data
| 產品型號 Product type | RN2-3、6、10 | RN215、20 | RN2-35 | |||
| 額定電壓Rated voltage KV | 3 | 6 | 10 | 15 | 20 | 35 |
| 額定電流Fuse current A | 0.5 | 0.5 | ||||
| 三相斷流容量Capacity of largest break of three-phase MVA | 500 | 100 | 1000 | 1000 | ||
| **開斷電流(有效值) Max break curent KA effective value KA | 100 | 85 | 50 | 40 | 30 | 17 |
| 過電壓倍數Overvoltage multiple Do not exceed | 不超過2.5倍工作電壓Do not exceed voltage of 2.5 times of rating | |||||
| 熔管電阻值Resistance of the fuse pipe(Ω) | 93±7 | 200±10 | 315±14 | |||
| 重量Weight Kg | 5.6 | 12.2 | 15.6 | |||
| 熔管重量Fuse weight Kg | 0.9 | 1.6 | 2.5 | |||
