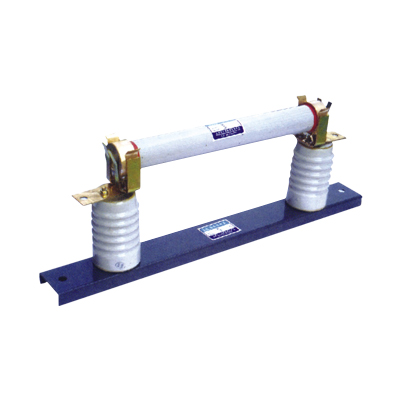

RN3型系列高壓限流熔斷器是用于電力線路及輸電設備的過載及短路保護。
RN3型系列高壓限流熔斷器比RNL型有如下改進。
1、熔體采用片狀變截面多斷口結構，為使開斷能力增強。開斷速度加快，開斷后絕緣可以迅速建立。對抗過電壓沖擊能力得到改善。
2、RN3型系列高壓限流熔斷器。為了使其能與FN5負荷開關配合工作。完善了指示的基本功能。
3、按**標準草案GBL5166.1-5—《限流式熔斷器》中的試驗方法，可開斷20-150MVA的短路容量，而RN1型只能開斷40～80MVA 的短路容量。RN3型可配合FN5開斷過載電流。開斷過載電流。
4、熔斷器的工作溫度降低，熔管的額定電流得到提高，具體參見圖樣。
The fuse flows in high voltage limt in RN3 type one(RN1)
1．Meltiing body adopt slice become section fracture structure more is for make and turn on and give up abiltiy streng then,open and break accelerating， can set up rapidly to bring up the rear insulatingl while openning. AssauIt ability and was improved after opposing the voltage.
2．RN 3 type serial high-voltage Iine the fuse flows．For enabIe them be abIe to cope rate with Fn5 on-Icad switch and work．Have perfected the basic function of pointing out．Should point for to trip in the organiz-ation on-load switch．
3．From nationaI standard d raft GBl5166．The experimental methods of”Iimit flowina type device fuse box”for1-5-94． can make the capacity of short circuit of breaking 20-1 50MVA．a(chǎn)nd Rn1 type can only make the capacity of short circuit of breaking 40-80MVA. Rn3 type can cooperated with Fn 5 and opened and broken the ilectric curtent in year. RNl type. can’t triP
4．Workinq temperature of fuse box reduce，rated current of the fuse has been ine reased，See the pattern concretly.
