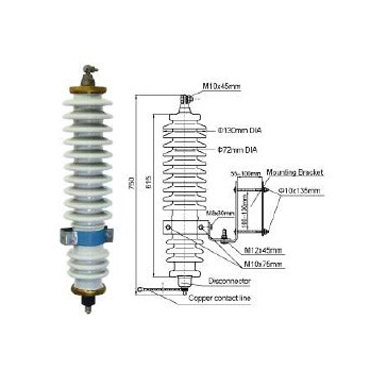

出口型瓷外套避雷器33KV
出口型瓷外套避雷器33KV
產品型號 | 額定電壓 | 持續運行電壓 | 工頻耐壓 ≥ |
1.2/50μs 沖擊放電電壓 ≤ |
8/20μs 雷電沖擊殘壓 ≤ |
長脈沖承受 | 4/10μs 高電流脈沖 |
KV(rms) | KV(rms) | KV(rms) | KV(rms) | KV(crest) | KV(crest) | KV(crest) | |
Y5C-33 | 33 | 27.5 | 56 | 99 | 99 | 100 | 65 |
Y10C-33 | 33 | 27.5 | 56 | 99 | 99 | 200 | 65 |
